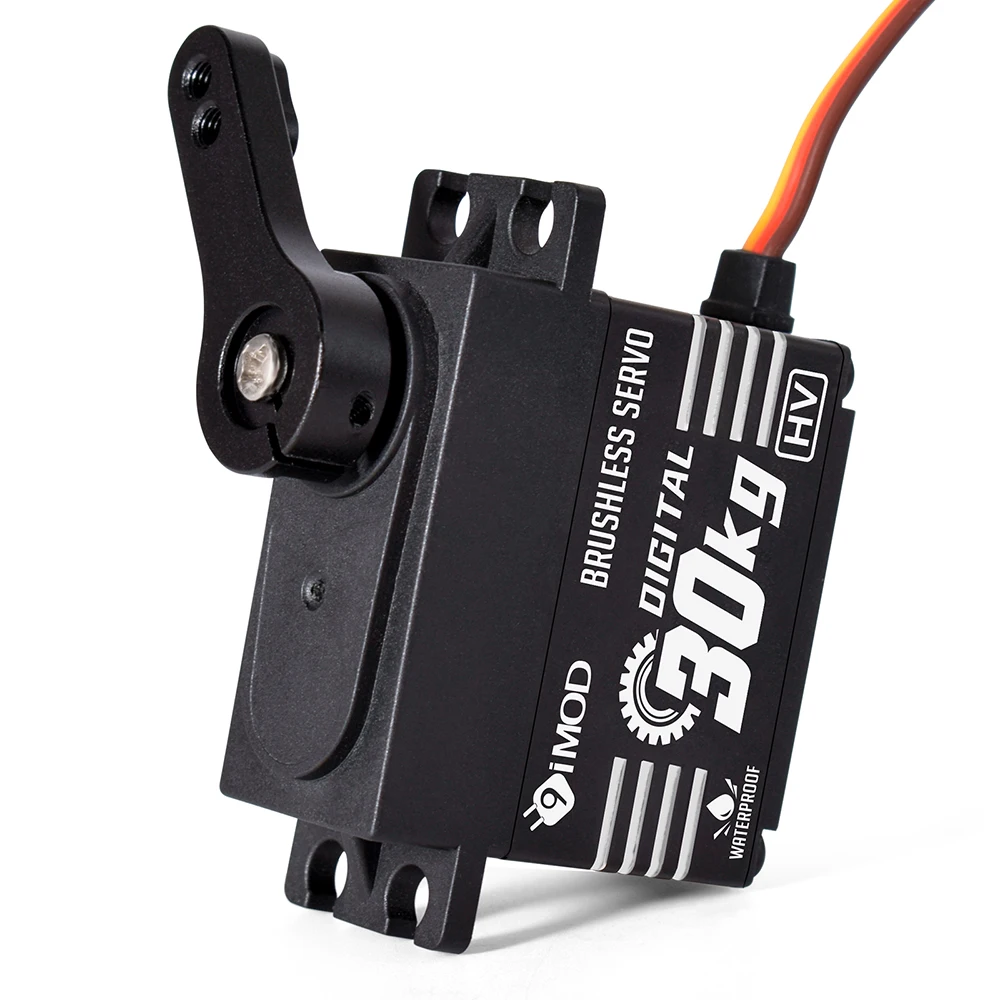

9imod Brushless Servo 20/30/40KG Aluminum Alloy Case Waterproof Digital Metal Gear Servo for 1/8 1/10 RC Crawler Car Boat DIY

9imod Brushless Servo 20KG 30KG 40KG Aluminum Alloy Case Waterproof Digital Metal Gear HV Servo for RC Car Truck Crawler Boat Robot DIY
Features:
1. 6.0V ~8.4V High voltage.High performance digital High Voltage Brushless
2. Waterproof performance: waterproof,Excellent linearity, precision control
3. Equipped with Metal Gears, Aluminum alloy case, Less Noise, light weight.Dual ball bearings
4. Widely Use Digital Servo:Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car/Robot /Boat and other remote control models
Description:
The 9imod BLS-HV Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,
It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:9imod
Color:Black
Gear Material:Metal Gear
Case Material:Aluminum alloy AL6061+Nylon additive
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0v ~8.4V
Operation Temperature Range:-20c°~ +60C°
Direction:Re-clock wise/ Pulse Travel 500-2500 usec
Diver type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x37.3mm
Weight:69.2g (without servo horn)
Ball Bearing:2BB
Connector Wire Length: 300MMJR Plug
Dead band width:2 usec
Model:BLS-HV20KG
Standing Torque:
0.08sec/60° 15kg-cm@6.0V
0.06sec/60° 20kg-cm@7.4V
0.055sec/60° 25kg-cm@8.4V
Model:BLS-HV30KG
Standing Torque:
0.09sec/60° 25kg-cm@6.0V
0.075sec/60°30kg-cm@7.4V
0.07sec/60° 33kg-cm@8.4V
Model:BLS-HV40KG
Standing Torque:
0.1sec/60° 35kg-cm@6.0V
0.085sec/60°40kg-cm@7.4V
0.08sec/60° 43kg-cm@8.4V
Package included:
1 x Servo
1 x Servo Accessories
Note:
Only the above package content, other products are not included.
