C4SF Receiver Corona-RC For Futaba FHSS / S-FHSS Mode Protocol With SBUS OutPut 4PM 3PV 7PX T14SG T8J T10J 4PX RC Car
€23.19
Product details
| Weight | 0.029 lbs |
|---|---|
| Dimensions | 16 × 14 × 2 in |
| Hign-concerned Chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Size | 35*25*10mm |
| Technical parameters | value 2 |
| Model Number | C4SF-HV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Other |
| Four-wheel Drive Attributes | Other |
| Remote Control Peripherals/Devices | RECEIVERS |
| Upgrade Parts/Accessories | Receiver |
| RC Parts & Accs | RECEIVERS |
| Material | Composite Material |
| Brand Name | SKYAREA |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE, FCC |
| Product Brand | Corona RC |
| Compatibility | Futaba FHSS/S-FHSS Protocol |
Description
* We are authorization dealer for all series of Corona Radio Sytem products many years in China. Warmly elcome contact us for wholesale and drop-shipping. 100% new and same day shipping surport*

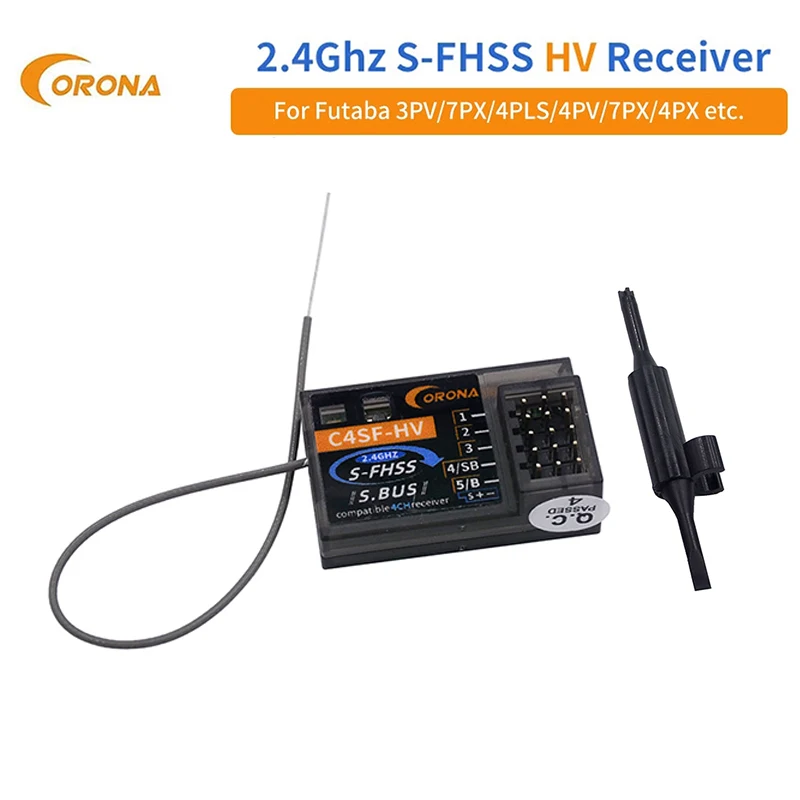

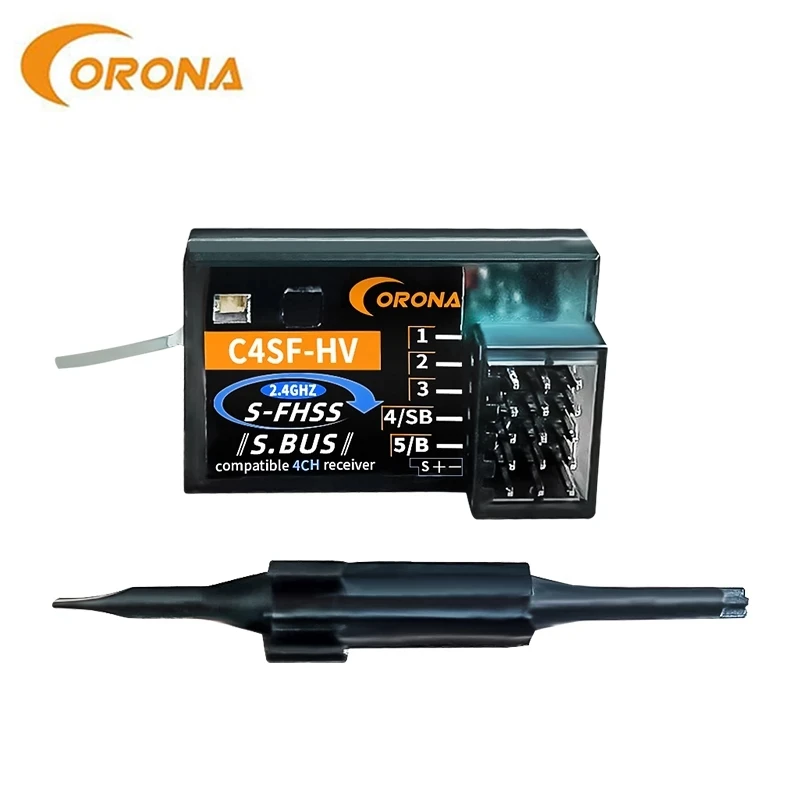

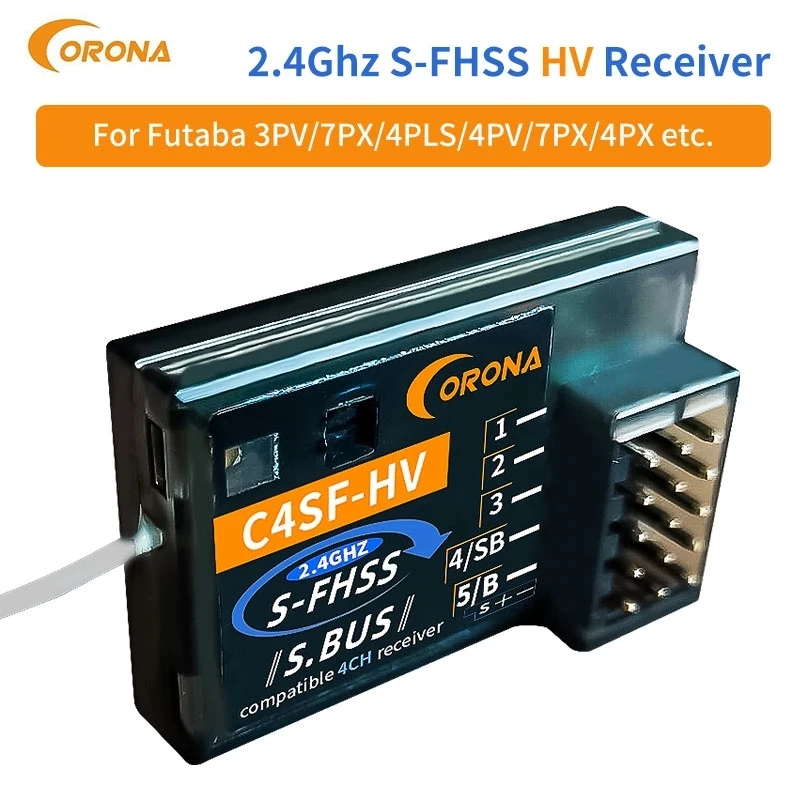

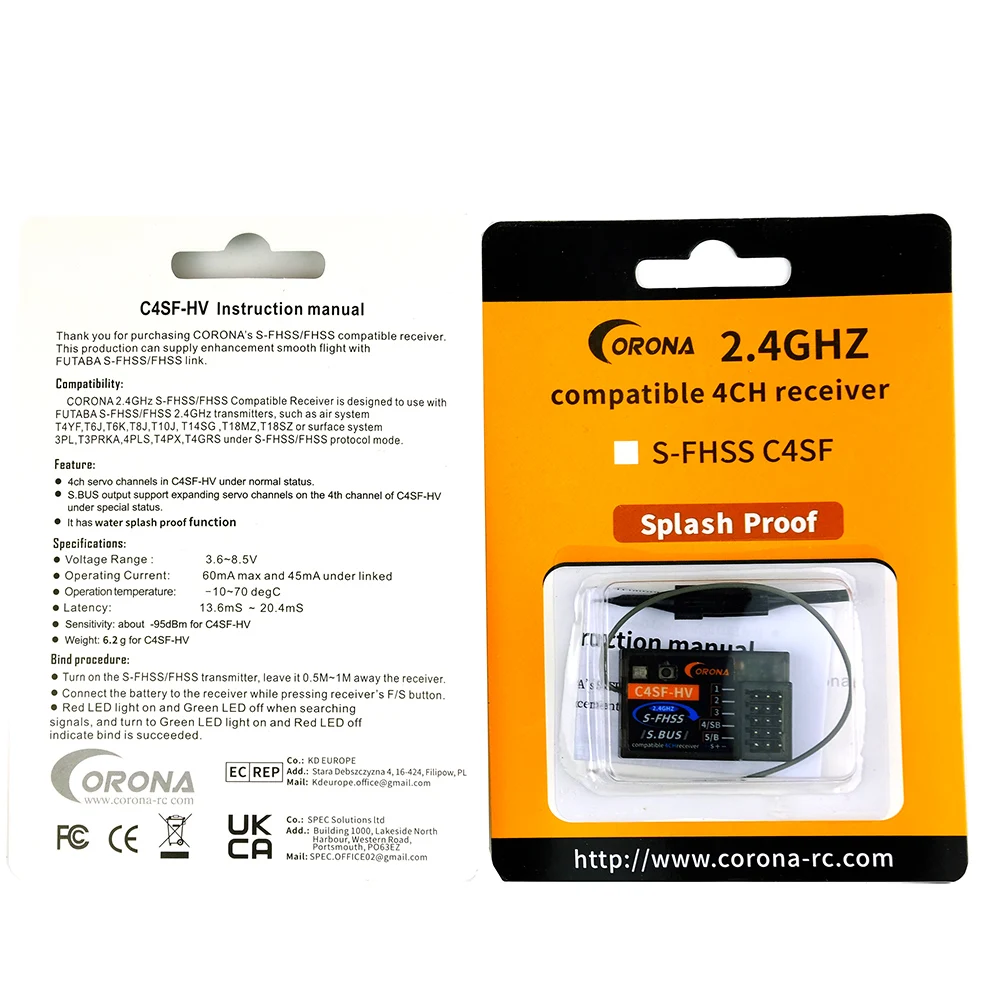

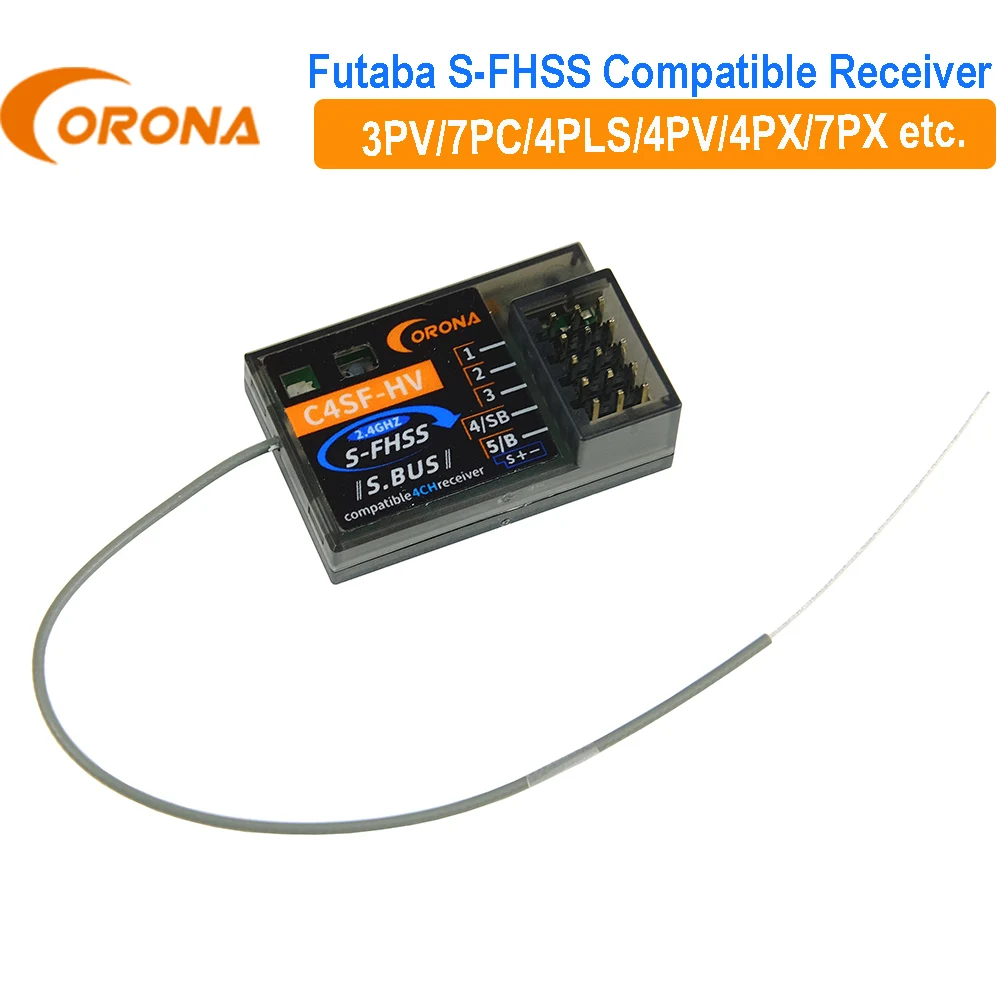

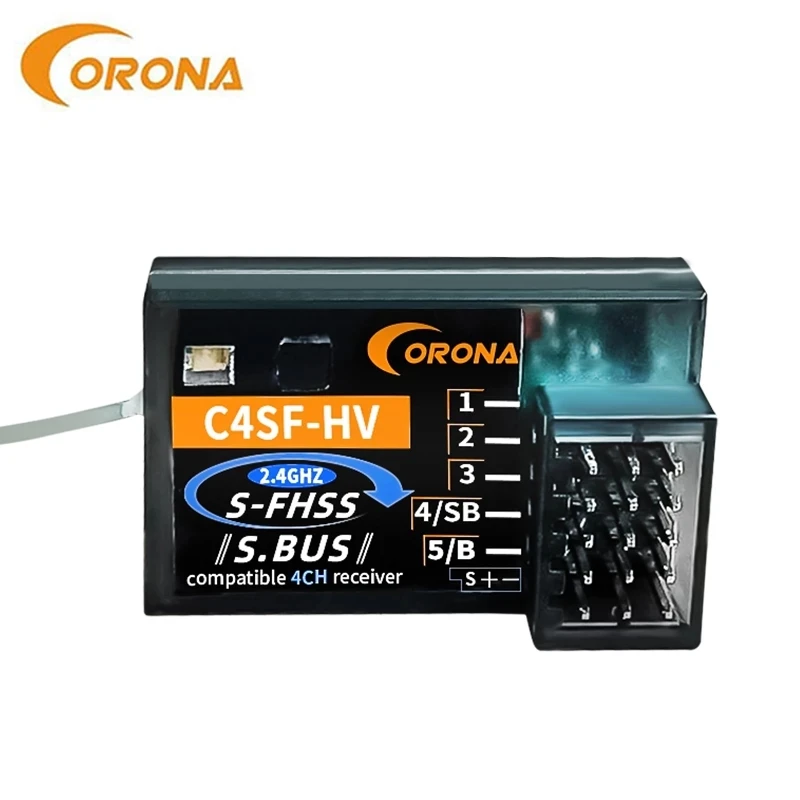

Corona C4SF-HV Compatible Receiver For Futaba FHSS / S-FHSS Mode Protocol With SBUS OutPut
Compatibility:
CORONA 2.4GHz S-FHSS/FHSS Compatible Receiver is designed to use with FUTABAS-FHSS/S-FHSS 2.4GHz transmitters, such as Air system:T4YF, T6J, T6K, T8J, T10J, T14SG, T18MZ, T18SZ
Surface system:3PL, T3PRKA, 4PLS, T4PX, T4GRS 4PM etc S-FHSS/FHSS protocol mode.
Feature:
-4ch servo channels inC4SF-HVunder normal status.
-S.BUS output support expanding servo channelsonthe 4thchannel ofC4SF-HVunder special status.
-It has splashproof
Specifications:
Brand: CORONARC
Sales & Fulfilation by: SKYAREA®
Voltage Range :3.6~8.5V
Operating Current:60mA maxand 45mA under linked
Operation temperature: -10~70 degC
Latency:13.6mS or 20.4mS
Sensitivity: about-95dBm forC4SF-HV
Weight:6.2g forC4SF-HV
Latency:7mS ~ 16mS
Bind procedure:
-Turn on the S-FHSS/FHS Stransmitter, leave it 0.5M~1M away the receiver.
-Connect the battery to the receiver while pressing receiver’s F/S button.
-Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
Fail-safe Setting:
C4SF-HVset failsafe on the S-FHSS/FHSS transmitter just like the operation of the FUTABA receiversif the feature exist.We highly recommend you set failsafe feature whiledrivingyour models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.
Package included:
1x C4SF -HV receiver
