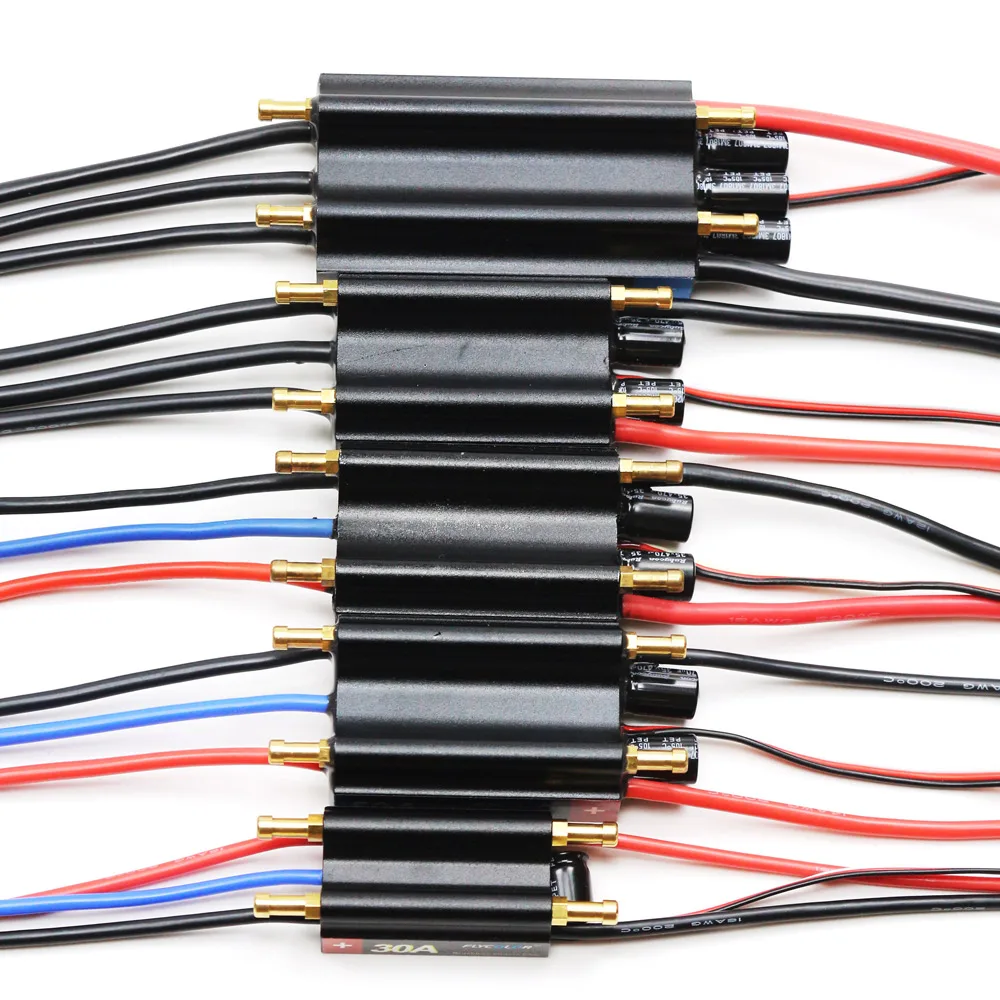

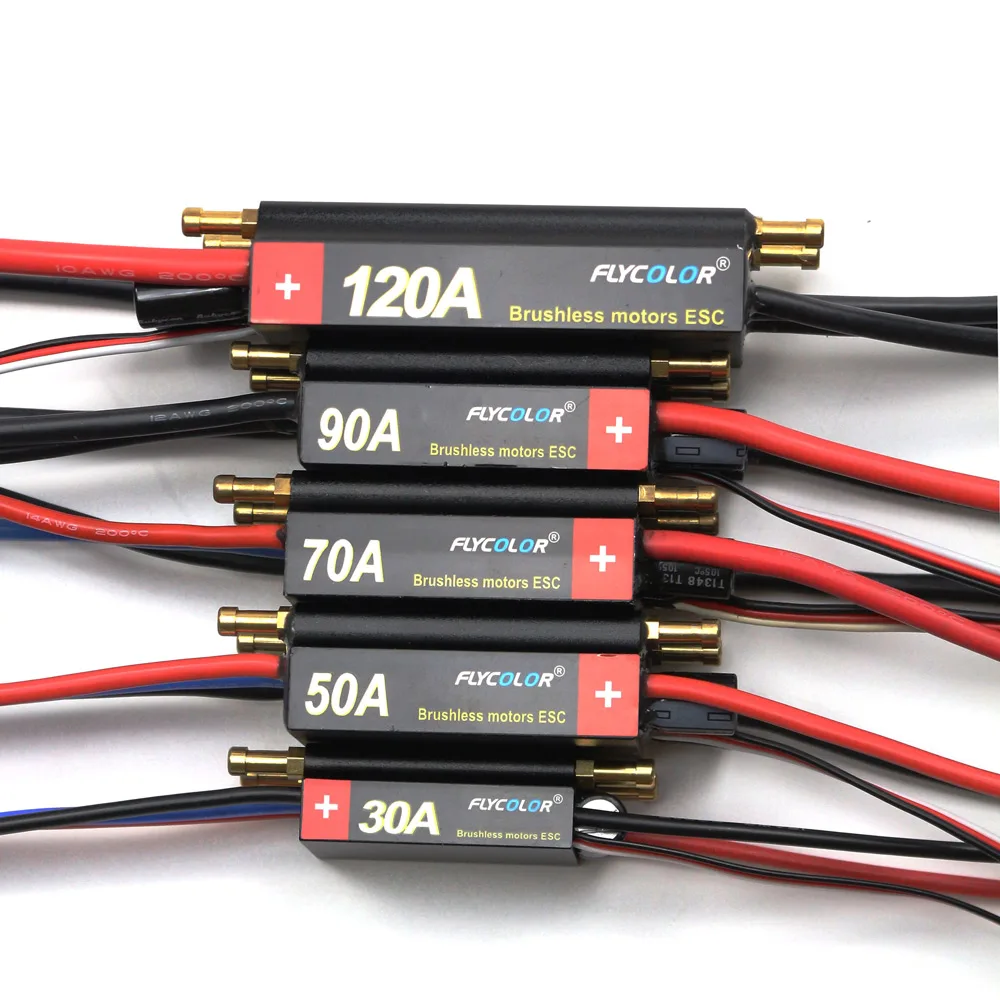

FlyColor 30A 50A 70A 90A 120A RC BOAT ESC Waterproof 2-6S Lipo Brushless Speed Controller with Program Card for RC Boat Motor

FlyColor 30A 50A 70A 90A 120A RC BOAT ESC Waterproof 2-6S Lipo Brushless Speed Controller with Program Card for RC Boat Motor
ESC Feature:
Excellent waterproof design allows this ESC to work in water without any extra precautions;
High quality components have very strong over-current withstanding capabilities;
Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable;
The External Programming Port can connect to the Program Card for easily setting the parameters of the ESC;
Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable;
Dual water-cooling tubes make the heat distribution on the heat-sink more proportional..
FlyColor 30A 2-4S Lipo Water cooling ESC with 5V/3A BEC Boat ESC, Programmable Brushless Speed Controller ESC
Item No: S30A
Application of ESC:Model ship
Electrical performance parameters of ESC:
Input Voltage: 2-4LiPo Batteries
Continuous current output: 30A
The maximum allowable instantaneous current (10S):40A
BEC type: OPTO
BEC output:: 5V/3A
Shape and weight of ESC:
Dimensions (LengthWidthHeight):70*27*17mm (Including external capacitor and aqueduct)
Weight: 53G
G.W: 81g
FlyColor 50A 2-6S Lipo Water cooling ESC with 5.5V 3ABEC Boat ESC, Programmable Brushless Speed Controller ESC
Item No: S50A
Application of ESC:Model ship
Electrical performance parameters of ESC:
Input Voltage: 2-6LiPo Batteries
Continuous current output: 50A
The maximum allowable instantaneous current(10S):70A
BEC type: OPTO
BEC output:5.5V/3A
Shape and weight of ESC:
Dimensions (LengthWidthHeight):87*38*22mm (Including external capacitor and aqueduct)
Weight: 105G
G.W: 155.4g
FlyColor 70A 2-6S Lipo Water cooling esc with 5.5V/4A BEC Boat ESC, Programmable Brushless Speed Controller ESC
Item No: S70A
Application of ESC:
Model ship
Electrical performance parameters of ESC:
Input Voltage: 2-6LiPo Batteries
Continuous current output:70A
The maximum allowable instantaneous current(10S):90A
BEC type: OPTO
BEC output: 5.5V/4A
Shape and weight of ESC:
Dimensions (LengthWidthHeight):87*38*22mm (Including external capacitor and aqueduct)
Weight: 105G
G.W: 158.60g
FlyColor 90A 2-6S Lipo Water cooling ESC with 5.5V/4A BEC Boat ESC , Programmable Brushless Speed Controller ESC
Item No: S90A
Application of ESC:
Model ship
Electrical performance parameters of ESC:
Input Voltage: 2-6LiPo Batteries
Continuous current output: 90A
The maximum allowable instantaneous current(10S):100A
BEC type: SBEC
BEC output: 5.5V/4A
Shape and weight of ESC:
Dimensions (LengthWidthHeight): 86*38*22MM (Including external capacitor and aqueduct)
Weight: 115G
G.W: 162.20g
FlyColor 120A 2-6S Lipo Water cooling ESC with 5.5V/4A BEC Boat ESC , Programmable Brushless Speed Controller ESC
Continuous Current: 120A
Peak Current: 130A
Input: 2-6S Lipo
BEC output: 5.5V/4A
External Program Port: Available
Water Cooling Pipe (Inside / Outside): 2.7 / 5.0
Size (Include the Water Cooling Pipe): 109mm*45.5mm*22mm
Weight:166.4g
Programming card:
Black Plastic ESC Programming Box Card For S30A S50A S70A S90A S120A S150A Brushless Boat ESC
This program box is used to program the brushless boat ESC, it has friendly user interface and easy to use.
Type: programming card
Size:95*66*16mm
Color: Black
Material: Plastic
Input Voltage:4.8V-6.0V
Package Content:
1 x Boat ESC or programming card(as you choose)
